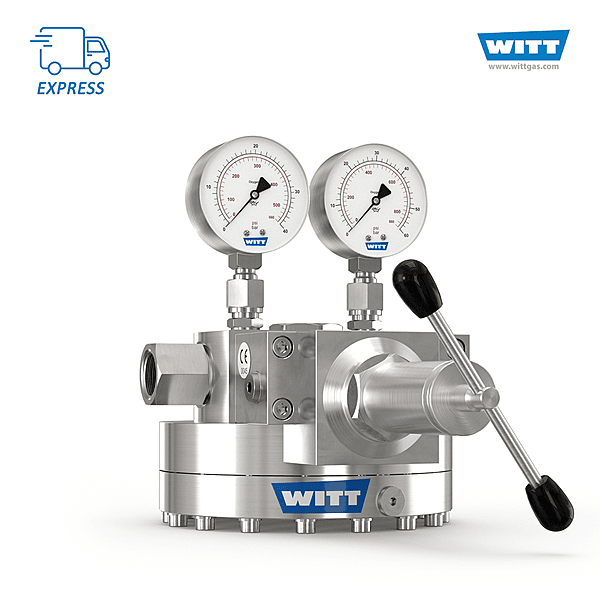

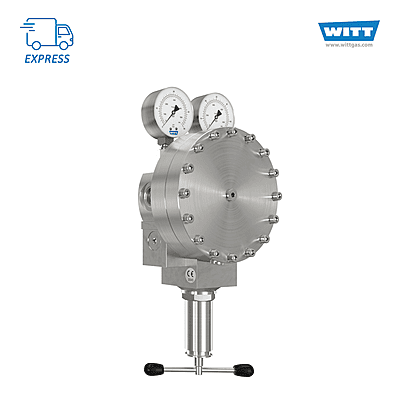

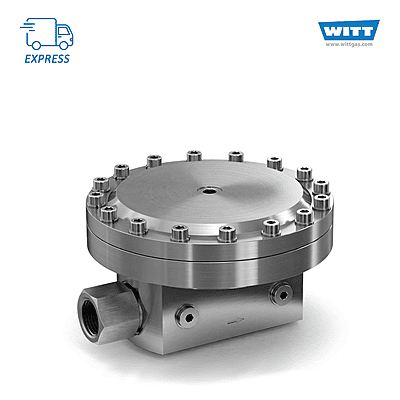

Dome Pressure Regulator 737 LE/S-ES
Non-returnable
€3.426,01
Tags:
⚡ FAST LANE
Ready in 3–5 Working Days
Connection: G 1" IG
Max. Inlet Pressure: 40 bar
Outlet Pressure: 0.5-10 bar
Connection
Choose Quantity
Product Details
Series 747LE
connections 1 / Kv value 3.6
High-performance dome-loaded pressure regulators for installation in pipelines or as manifold pressure regulator per DIN EN ISO 7291. For high and varying flows requiring maximum pressure stability.
- high pressure stability even during flow and temperature fluctuations
- outlet pressure range 0.5-30 bar
- ready-to-use
- option: lockable spindle hood against unauthorized adjustment
- set includes integrated pilot pressure regulator, and stainless steel pressure gauges, completely assembled and tested
- easy to install and to integrate directly into the process
- different mounting parts available
- also as a SMART model for connected manufacturing
