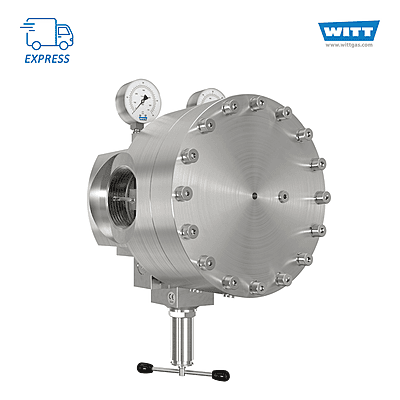

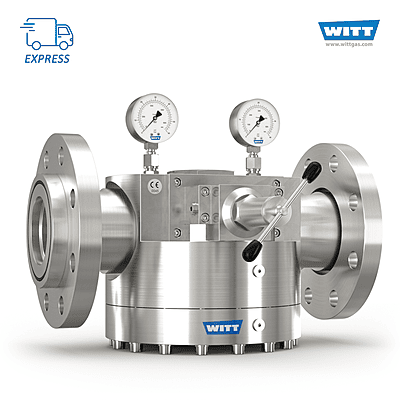

Dome Pressure Regulator 767 LE/S-ES
Non-returnable
€15.384,16
⚡ FAST LANE
Ready in 3–5 Working Days
Connection:
G 3" IG
3" NPT IG
Max. Inlet Pressure:
40 bar
Outlet Pressure:
0.5-10 bar
0.5-30 bar
Connection
Outlet Pressure
Choose Quantity
Product Details
connections G 3" F / flange DN80/100, Kv value 30 / Cv value 35.1
High-performance dome-loaded pressure regulators for installation in pipelines or as manifold pressure regulator per DIN EN ISO 7291. For high and varying flows requiring maximum pressure stability.
- high pressure stability even during flow and temperature fluctuations
- outlet pressure range 0.5-30 bar
- ready-to-use
- option: lockable spindle hood against unauthorized adjustment
- set includes integrated pilot pressure regulator, and stainless steel pressure gauges, completely assembled and tested
- easy to install and to integrate directly into the process
- different mounting parts available
